Model / Part Number
|
|
Model
|

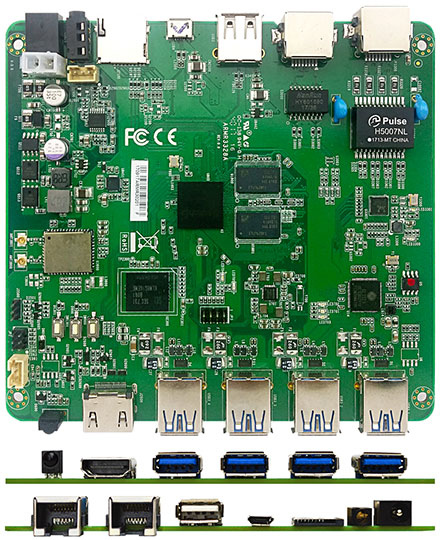

– JARM3328A-2N
|
|
Part Number
|
– JARM3328A-2N
|
|
Form Factor
|
|
Dimensions
|
– 130 * 120mm
|
|
Processor System
|
|
CPU
|
– Rock chip® ARM Cortex A53 RK3328 1.5GHz
|
|
Core Number
|
– Quad-core
|
|
Max Speed
|
– 1.5G
|
|
L2 Cache
|
– 0
|
|
Chipset
|
– Rock chip® ARM Cortex A53 RK3328 SOC
|
|
BIOS
|
– 0
|
|
PMU
|
– Rock chip® RK805-1
|
|
Expansion Slot
|
|
Mini-PCIe
|
– 0
|
|
TF Card Socket
|
– 1
|
|
SIM Card Holder
|
– 0
|
|
Memory
|
|
Technology
|
– Onboard DDR3L 1333MHz2GB
|
|
Max.
|
– 4GB
|
|
Flash Rom
|
– 8GB (Max 32GB)
|
|
Graphics
|
|
Controller
|
– (by CPU)
|
|
VRAM
|
– Shared Memory
|
|
LVDS
|
– 0
|
|
HDMI
|
– 1 (2.0)
|
|
MIPI
|
– 0
|
|
DisplayPort
|
– 0
|
|
MultiDisplay
|
– Single Display
|
|
Ethernet
|
|
Ethernet
|
– 10/100/1000 Mbps; 10/100 Mbps
|
|
Controller
|
– 1 * Realtek RTL8211F-CG Gigabit LAN
– 1 * 10/100 Mbps internal FE PHY
|
|
Connector
|
– 2 * RJ 45
|
|
Audio
|
|
CODEC
|
– HD Audio: SGM89000
|
|
Channel
|
– 2 Channels
|
|
Special Features
|
|
WIFI
|
– 802.11 a/b/g/n/ac,5.0G
|
|
WIFI Chip
|
– RTL8822BS
|
|
Bluetooth
|
– BT-V4.1 SDIO BLE
|
|
OS
|
– Android 7.1, Linux 4.4
|
|
Rear I/O
|
|
HDMI
|
– 1 (3840 x 2160@60Hz)
|
|
Ethernet
|
– 0
|
|
USB
|
– 4 (4* UB3.0)
|
|
IR
|
– 1
|
|
Audio
|
– 1 (Line-out +MIC)
|
|
Front I/O
|
|
Audio
|
– 1 (Line-out +MIC)
|
|
USB
|
– 6 (4* UB3.0 + 1* USB2.0 + 1 * OTG)
|
|
Ethernet
|
– 2
|
|
TF Card Socket
|
– 1
|
|
DC-input
|
– 1
|
|
Power Requirements
|
|
Input PWR
|
– 5 ~ 12V DC-in (PWR Con)
|
|
Power On
|
AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
|
|
Certifications
|
|
Certifications
|
– RoHS, REACH, CE, FCC (Option)
|
|
Environment
|
|
Temperature
|
– Operating: -10°C ~ 60°C
|
|
– Storage: -20°C ~ 65°C
|
|
Warranty
|
|
Warranty
|
– 2 Years Limited Warranty
|
