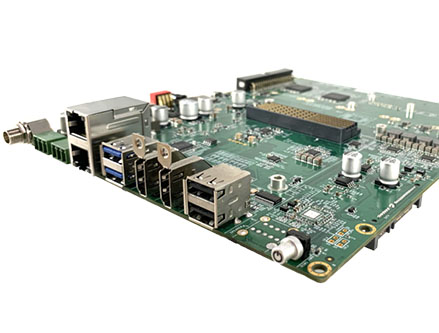

AVerMedia’s AG411 carrier board fully supports NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial which is designed for AI-centric edge computing for use cases such as robotics and industrial automation.
The AG411 carrier board provides 4x Mini-PCIe and 2x M.2 Key M 2280 slots allowing flexibility to receive various video inputs through AVerMedia’s capture cards.
For added flexibility, additional capture cards can be included to receive HDMI, VGA, SDI, composite video inputs, and even dual 4Kp30 HDMI video inputs for different application scenarios.
For applications that requires IP cameras, the AG411 provides 2x GbE, and 2x USB 3.0 interfaces. General purpose I/O are ready for developers to use such as 2x 4Kp60 HDMI output, 1x USB 2.0 Micro-B for BSP installation only, 1x micro SD, 1x Mic-in, and 1x Speaker-out, 1x CAN bus, 1x RS-485. It also provides 40 pins of GPIO expansion: 1x UART, 2x I2C, and 5x GPIO 1x CAN for Xavier to communicate with external devices.
This performance-driven edge computer is an application-ready platform for for multiple use cases.
- Fully support NVIDIA® Jetson AGX Xavier™ or Xavier™ Industrial
- 4x Mini-PCIe Gen2 x1 or 2x M.2 Key M 2280 (PCIe Gen2x 4)
- 1x M.2 Key E 2230 for Wi-Fi module
- 1x M.2 Key M 2280 for NVMe
- 2x GbE, 2x USB 3.0, 2x 4Kp60 HDMI output
- 1x USB 2.0 Micro-B for BSP installation only , 1x micro SD
- 1x CAN bus, 1x RS-485, 1x Mic-in, 1x Speaker-out
- 40 pins: 1x UART, 2x I2C, 5x GPIO, and 1 x CAN (W/O transceiver)
- Operating temperature: -10°C ~ 60°C
- Wide Voltage 12-54V
