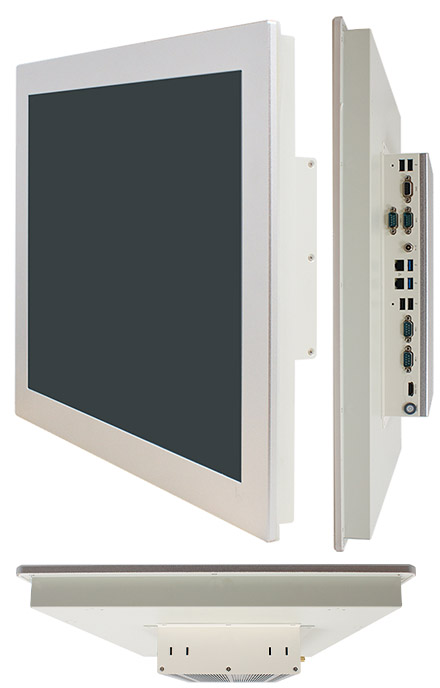

Jetway HPC170GR-HD6412 PanelPC (Intel Elkhart Lake J6412) [17.0" Touch Panel TFT, IP65, 9-28V DC-in]

17.0”350 nits high brightness TFT LCD with LED backlight
5 Wire Resistive Touch/Anti-Reflection Protection Glass
Cable less, Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casings
Strong solid aluminum frame design and Fanless cooling system
Support Open frameless design
Design for easy Wall mount, Panel Mount, VESA Mount installation
A true Flat, easy-to-clean front surface with edge-to-edge design
USB2.0 Support Lock Device
Front IP65 for protection against water and dust
9-28V DC-input Support, with EOS, OVP design
Support TPM2.0 (HPC170GR-HD6412T2 only)
VESA Support 100x100mm

Model	– HPC170GR-HD6412
Main System	– Intel® Elkhart Lake J6412 2.0GHz/QC processor – DDR4-3200MHz SO-DIMM up to 32GB – 128MB SPI Flash ROM BIOS – 2* 3W/8Ω speaker – Watchdog Timer 256 levels, 0~255 sec. – OS Support Windows 10/ 11 / Linux (Option)
Display	– IP65, NEMA 4 rugged protection, metal front bezel – 17.0″ With LED Backlight – 350nits Brightness (cd/m²) – 16.7M display color – 1280 x 1024 @ 60Hz – 170°/160° viewing angle (H/V) – 0.264 x 0.264mm pixel pitch – 4:3 aspect ratio – 1000:1 contrast ratio – 3.5ms response time
Touch Screen	– 5 wires analog resistive type – 337.00 x 269.50mm ±0.2mm – Operating Force ≦ 80g – Transparency 80 ±3% – Surface Hardness ≧ 3H (ASTM D3363, pressure 750g/45°) – 10,000,000 times keystrokes
I/O Connector	– 2* USB3.2 (Gen1) – 4* USB2.0 – 2* RS232/422/485 – 2* RS232 – 1* HDMI2.0 (Max Resolution: 3840 x 2160@60Hz) – 1* 8bit GPIO – 2* Intel®i225-V 2.5GbE – 1* Locking Jack 9~28V DC input – 1* Power button
Storage	– 1* 2.5” SATA bay – 1* M.2 M key (2242/2280, SATA/NVMe)
Expansion	– 1* M.2 E-key (2230 for WIFI/BT Module) – 1* M.2 B-key (3042/3052 for 4G/5G Module)
Case	– Aluminum panel – Iron case – Silver + White color – Spray paint coating requirement
Power	– AC version: 100~240V AC-DC 60W power adapter or – DC version: 12VDC with over current protection fuse – Consumption: 42.5W
Compliance	– CE, FCC, IP65 (Front)
Safety	– Shock: 15G, 11ms duration – Vibration: 5~500Hz/1 Grms
Dimensions	– 400 x 335 x 74mm
Temperature	– Operating: 0°C ~ 60°C (with W.T. DRAM/HDD in airflow condition) – Operating: 0°C ~ 60°C (with W.T. DRAM/HDD) – Storage: -20°C ~70°C

Data sheet	Download (PDF)
Data sheet	Print view
