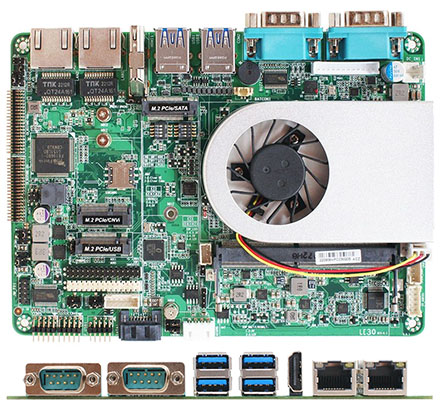

Jetway LE30-6305E (Intel Celeron 6305E SoC, 2x COM, 2x LAN, 12-24V DC-in)

Jetway LE30-6305E (Intel Celeron 6305E SoC, 2x COM, 2x LAN, 12-24V DC-in)
  • Celeron 6305E !
  • 2x COM !
  • 5,5" EPIC !

  • Intel® Tiger Lake-UP3 SoC Processor (TDP 12~28W)
  • 1* DDR4-3200MHz SO-DIMM up to 32GB
  • 2* Intel i225-V 2.5GbE
  • 1* VGA,1* HDMI2.0b, 1* eDP, 1* 24-bits LVDS
  • 2* RS232, 2* RS232/422/485, 2* USB3.2 (Gen2), 2* USB3.2 (Gen1), 2* USB2.0
  • 1* M.2 M-key (2242/2280, 1* M.2 E-key(2230), 1* M.2 B-key (3042/3052), 1* SATAIII (6Gb/s)
  • 2* Mixture Header (2* UART, 3* USB2.0, 1* LPC, 1* GPIO(8bit), 1* PCI-Ex1)
  • Onboard TPM 2.0 (option)
  • 12~24V DC-in


Share

529.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
  • Specifications
  • Data sheets and downloads
  • Customer ratings
Model – LE30-1135G7 (Default: i5-1135G7)
– LE30-1135G72 (135G7, TPM2.0)
– LE30-1145G7E (i5-1145G7E)
– LE30-1145G7E2 (1145G7E, TPM2.0)
– LE30-6305E (6305E)
– LE30-6305E2 (6305E, TPM2.0)
– LE30-1115G4E (i3-1115G4E)
– LE30-1115G4E2 (i3-1115G4E, TPM2.0)
Form Factor – 5.5” EPIC (168 * 120mm)
Processor System – Default: Intel® Tiger Lake i5-1135G7 SoC Processor 2.4G/QC (TDP 12~28W)
– Intel® Tiger Lake6305E / i3-1115G4E / i5-1145G7E SoC Processor
– AMI Flash ROM BIOSS
Memory – 1* DDR4-3200 Dual Channel SO-DIMM up to 32GB
Storage – 1* M.2 M-key 2242/2280, PCIe 4.0 x4interface, support NVME/SATA (Jumper)
– 1* SATAIII
Expansion – 1* M.2 E-key (2230) USB2.0/PCIex1 interface support CNVi
– 1* M.2 B-key(3042/3052) USB2.0/PCIex1 interface support 3G/4G Module)
Ethernet – 2* Intel i225-V 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1080@60Hz)
– 1* eDP (Max Resolution:4096×2304@30Hz)
– 1* LVDS (Max Resolution: 2560×1600@60Hz)
– 1* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
– Support three independent Displays
Audio – HD audio: REALTEK codec
– 3W AMP speaker
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 2* USB 2.0
– 1* VGA
– 1* LVDS / Inverter/ Light UP/Down
– 1* eDP
– 2* COM (RS232)
– 1* Audio Header
– 1* Speaker(3W)
– 1* SATAIII /SATA Power
– 2* Mixture Header(2* UART, 1* GPIO (8 bit), 3* USB2.0, 1* LPC, 1* PCI-Ex1)
– 1* Chassis intrusion
– 1* DC Header(DC 12-24V)
– 1* SMBUS
– 1* AT model
– Optional onboard TPM2.0
External I/O – 2* USB3.2 (Gen2)
– 2* USB3.2 (Gen1)
– 1* HDMI
– 2* RJ45
– 2* COM(RS232/422/485)
Power 12~24V DC-in, ATX power in
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH (Option)
Temperature – Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux
